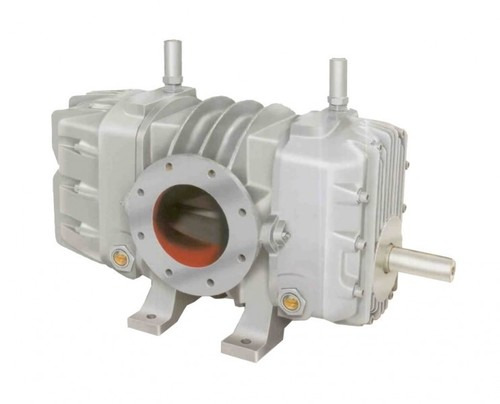

Twin Lobe Water Cooled Compressor

Get a Price/Quote

MOQ : 1 , , Unit

Twin Lobe Water Cooled Compressor Specification

Cooling Method
Water Cooled

Power Rating
5.5 55 kW

Motor Power
7.5 HP 75 HP

Frequency
50 Hz

Phase
Three Phase

Flow Rate
140 m/hr 6500 m/hr

Control System
Manual / Automatic

Noise Level
Below 85 dB

Filtration Grade
Industrial

Pressure Capacity
Up to 1 kg/cm (g)

Weight
9002500 kg (depends on model)

Type Of Compressor
Twin Lobe Water Cooled Compressor

Allied Equipment
Intercoolers, Aftercoolers, Silencers

Power Source
Electric

Silent
No

Lubrication Type
Oil Lubricated

Voltage
415V

Driven Mode
Belt Driven

Twin Lobe Water Cooled Compressor Trade Information

Minimum Order Quantity
1 , , Unit

FOB Port
Mundra

Supply Ability
20 Units Per Month

Delivery Time
30 Days

Packaging Details
Wooden Box Packaging

Main Export Market(s)
Africa, Asia

Main Domestic Market
All India

About Twin Lobe Water Cooled Compressor

Incorporated with modern features as per industrial standards and requirements, we manufacture, supply & export a wide range of Twin Lobe Water Cooled Compressors. We are committed to offer quality water cooled compressors, so we use high grade raw materials during the engineering process. During the boosting and compression of different gases, these cooled compressors are immensely used. Twin Lobe Water Cooled Compressors is highly appreciated among our clients for its high tensile strength, optimum performance and long functional life.

Specifications

P1 Mbar		500		600		700		800		900		1000
Model	RPM	CMH	BHP	CMH	BHP	CMH	BHP	CMH	BHP	CMH	BHP	CMH	BHP
DRP-401	1450	128	5.5	126	6.5	124	7.5	122	8.5	120	9.5	118	10.5
DRP-401	2850	375	10.5	367	12.6	362	14.5	358	16.3	354	18.3	350	20.4
DRP-601	1450	590	17.0	580	20.0	570	23.0	560	26.0	555	29.0	550	32.0
DRP-601	2000	880	23.0	870	27.0	860	31.0	850	35.0	840	39.0	835	43.0
DRP-1501	980	1290	34.0	1270	40.0	1250	46.0	1230	53.0	1220	59.0	1210	65.0
DRP-1501	1450	1990	51.0	2010	60.0	1980	69.0	1960	78.0	1940	87.0	1920	96.0
DRP-3001	725	2550	66.0	2500	78.0	2450	90.0	2400	102.0	2360	114.0	2320	125.0
DRP-3001	980	3610	91.0	3570	107.0	3520	123.0	3480	139.0	3440	155.0	3410	170.0

P1 = Pressure Differential in mbar. (100 mbar = 1020 mm wg = 0.1 kg/Cm2).

We undertake repairing of SLM-Mankelala and similar design of any other make and imported roots blower, vacuum pump, rotary ari compressor etc.

Efficient Water Cooling System

This twin lobe compressor employs a robust water cooling technique, ensuring thermal stability and peak performance during extended operation. Water cooling is highly effective for dissipating heat, making it suitable for environments requiring consistent output without overheating. The integrated intercoolers and aftercoolers further enhance the compressors efficiency and reliability.

Versatile Industrial Application

Driven by a belt system and powered by a three-phase motor, the Twin Lobe Water Cooled Compressor is ideal for supplying air or process gas across diverse industries. Its broad flow and power range makes it adaptable for various scales, from moderate to heavy duty. With both manual and automatic control options, it suits facilities requiring flexible operation.

FAQs of Twin Lobe Water Cooled Compressor:

Q: How does the water cooling system benefit the Twin Lobe Compressor during operation?

A: The water cooling system effectively maintains optimal temperature levels, reducing the risk of overheating and promoting consistent compressor performance over prolonged periods. This results in higher operational efficiency and longer equipment lifespan.

Q: What types of industrial environments are suitable for installing this compressor?

A: This compressor is ideal for environments where continuous air or gas supply is essential, such as manufacturing plants, chemical processing units, and pneumatic conveying systems. Its noise level below 85 dB makes it well-suited for settings with stringent noise restrictions.

Q: When is it necessary to use allied equipment like intercoolers and aftercoolers with this compressor?

A: Intercoolers and aftercoolers are recommended during high-output operations or when the temperature of compressed air must be controlled, preventing moisture buildup and improving overall efficiency in demanding industrial uses.

Q: Where can the Twin Lobe Water Cooled Compressor be exported or supplied from?

A: This compressor is manufactured, supplied, and exported from India, ensuring compliance with industrial standards and availability for global markets.

Q: What is the process for handling routine maintenance on the compressor?

A: Routine maintenance involves regular inspection and replacement of oil, checking belt tension, monitoring water cooling system integrity, and ensuring all control mechanisms function properly to maintain performance and longevity.

Q: How is the compressor operated and controlled in an industrial setup?

A: Operation can be managed either manually or automatically, depending on facility requirements. The control system provides flexibility, allowing the compressor to adapt to various workflow patterns and automate shutdowns or start-ups as needed.

Q: What advantages does the oil-lubricated design offer for this compressor?

A: Oil lubrication minimizes friction and wear on moving parts, leading to smoother operation and reduced maintenance frequency. This design choice enhances reliability and ensures the compressor can withstand intensive industrial use.
