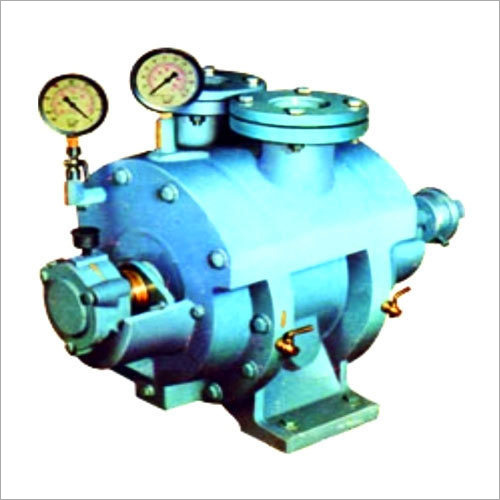

Metallic Water Ring Vacuum Pump

Name: Metallic Water Ring Vacuum Pump
Brand: AIR VAC EQUIPMENT
Price: 53000 INR
Availability: InStock

Price 53000 INR/ Piece

Get a Price/Quote

MOQ : 1 , , Piece

Metallic Water Ring Vacuum Pump Specification

Max Suction
8 m

Working Temperature
Up to 80°C

Noise Level
Below 80 dB

Frequency
50/60 Hz

Discharge Pressure
0.2 ~ 0.8 bar

Mounting Type
Base Mounted

Inlet/Outlet
Flanged

Head Size
Customizable

Control System
Manual / Automatic

Theory
Water Ring Vacuum Pump

Material
Cast Iron / Stainless Steel

Structure
Horizontal

Standard
IS/ISO Compliant

Fuel Type
Electric

Pressure
Vacuum up to 700 mm Hg

Usage
Other

Application
Other

Suction Type
Single / Double Stage

Seals Type
Mechanical Seal

Priming
Self Priming

Pump Type
Rotary Water Ring

Metallic Water Ring Vacuum Pump Trade Information

Minimum Order Quantity
1 , , Piece

FOB Port
Mundra

Payment Terms
Cash on Delivery (COD), Cash Against Delivery (CAD), Telegraphic Transfer (T/T), Cash in Advance (CID), Cash Advance (CA)

Supply Ability
20 Pieces Machine Per Month

Delivery Time
30 Days

Packaging Details
Wooden Box Packaging

Main Domestic Market
All India

About Metallic Water Ring Vacuum Pump

We are AIR VAC Equipment take pride to introduce ourselves as a reckoned manufacturer, supplier and exporter of Water Ring Vacuum Pump. Available in different specifications, these pumps are suitable for vacuum drying, distillation, evaporation, filtration and water extraction from paper and cloth. Owing to features such as high operational fluency, robust construction and easy installation, our metallic Water Ring Vacuum Pump is widely appreciated among our clients. Apart from this, clients can buy these vaccum pumps from us at reasonable prices.

Specifications:

Water Ring Vacuum Pumps

Model DWV	4	7	12	15	20	30	40	60	100	150
Speed RPM	2850	2850	2850	1450	1450	1450	1450	980	980	725
Max. Capacity M3/Hr	49	81	123	160	220	330	440	725	1080	1500
Rec. Motor HP	4	5	7.5	7.5	10	15	20	30	40	75
Water Consumption LPM	7	9	14	16	20	30	40	60	100	150

Max. Vacuum 710 mmhg at 30^oC of Inlet water and Barometer at 760 mmhg.

Advanced Water Ring Technology for Reliable Performance

Built on water ring vacuum pump theory, this equipment efficiently creates vacuum conditions essential for processes such as filtration, drying, and evacuation. Its robust cast iron or stainless steel construction ensures durability in demanding industrial and chemical environments. Adhering to IS/ISO standards, the pump combines dependability with easy integration into existing systems.

Flexible Applications and Customizable Features

The vacuum pump suits a wide variety of operations, offering flexible mounting, suction type (single or double stage), and custom head sizes. The self-priming design streamlines installation, while options for manual or automatic control adapt to your workflow requirements. Flanged inlet and outlet connections further increase compatibility.

FAQs of Metallic Water Ring Vacuum Pump:

Q: How does the water ring vacuum pump work in industrial applications?

A: The pump operates using water ring technology, where a rotating impeller creates a liquid ring that forms chambers for gas compression and evacuation. This principle enables the removal of air or other gases from process systems, making it ideal for industrial, chemical, and process-related tasks.

Q: What benefits does the mechanical seal provide?

A: The mechanical seal ensures a leak-free system, minimizing maintenance needs and enhancing operational safety. This type of seal is particularly resistant to wear, supporting longer service intervals in demanding industrial applications.

Q: When should a single stage versus a double stage pump be selected?

A: A single-stage vacuum pump is suitable for general-purpose industrial and chemical processes requiring moderate vacuum levels. Double-stage variants are ideal when deep vacuum or higher efficiency is necessary, providing greater vacuum pressure for specialized applications.

Q: Where can the metallic water ring vacuum pump be installed?

A: This pump is typically base mounted and can be integrated into various process system setups, including filtration, drying lines, or evacuation systems. The flanged inlet and outlet allow for straightforward connection to existing pipelines.

Q: What is the process for customizing head size or material?

A: Customers can specify their required head size and preferred material, such as cast iron or stainless steel, during the order process. The manufacturer will tailor the design to meet operational requirements and ensure compatibility with your application.

Q: How does the pump benefit industrial operations?

A: The vacuum pump increases efficiency in applications like filtration, drying, and gas evacuation, providing consistent vacuum up to 700 mm Hg and low noise performance. Its robust material, compliance with standards, and customizable features ensure reliability and operational flexibility.
